F125 Frigate, Germany

Crew
Two crews of 100 plus 50 aircrew

Crew Rotation
Two crew rotated every four months

Full Load Displacement
5,500t

Dimensions:
Length
139.4m
Beam
18.1m
Draught
5.0m

Performance:
Speed
48km/h
Range at 33km/h
7,400km

Propulsion:
Type
CODLAG
Gas Turbine
1 x 20MW LM 2500
Diesel Engines
4 x MTU 20V 4000 M53B (12.06MW)
Electric Motors
2 x Siemens (9MW)

The German Navy's new F125 frigate will have the capability to be deployed worldwide for up to two years before returning to the home base and can be in operation for up to 5,000 hours a year, including under tropical conditions.

The main mission of the F125 frigate is taking part in joint assignments, including multinational assignments in network-centric operations. The 5,500t displacement frigate has a new and stealthy design of hull and superstructure, which appears to be based on a highly modified Meko-D configuration.
The German Navy started to plan a successor for the F122 Bremen Class frigates in 1997. The German Navy operates eight Bremen Class F122 frigates, which entered service between 1982 and 1990.

The concept of the replacement frigates was originally as a multi-role combatant but, by 2005 the requirement for the F125 was based on a capability to counter asymmetric threats and perform stabilisation operations with lethal and non-lethal intervention. The German Navy announced that the F125 would be armed with land attack systems and air warfare point-defence equipment but would not be equipped with sonar.

In June 2007, ThyssenKrupp announced the Arge F125 consortium had been contracted by the Federal Office for Defence Technology and Procurement (BWB) for four F125 frigates. The Arge F125 consortium comprises the industrial leader, ThyssenKrupp Marine Systems (including Blohm + Voss and Nordseewerke) with Lurssen Werft. Construction is expected to start in 2011 and delivery of the first of class F125 is scheduled for 2014. Deliveries are expected to take place at one-year to two-year intervals with completion of delivery of all four frigates between 2017 and 2022.
F125 crew

Each frigate has two crews of typically 105 to 120 people, who are changed every four months. The number of crew represents an approximately 50% reduction in crew compared to previous generation frigates and is achieved partly through a high level of automation.

The frigate also accommodates 50 special forces and their equipment. The special forces' transportation can be two helicopters or four armed boats.
Command and control

In March 2006, EADS was contracted to supply the F125 command and control and weapons deployment system, FuWES (Fuhrungs-und Waffeneinsatzsystem). The contract covered the development and delivery of the system, including the complete software, hardware and infrastructure and the FuWES testing and performance verification for all four frigates.

The FuWES system has an open and modular structure allowing flexibility to accommodate future additional or modified systems. In order to provide tactical data exchange and a high level of interoperability with other joint and combined military platforms, the communications systems, link 11, link 16 and link 22 are integrated into F125 command and control system. The combat management system is operated from the Atlas Elektronik OMADA consoles, designed specifically for the F125.
Weapons

The ship is equipped for defence against air attack and also for land attack.

The F125 is also armed with non-lethal weapons, such as water cannons and searchlights for non-provocative deterrence and defence.
F125 guns

The ship is fitted with ten guns, 12.7mm to 155mm, which allow fast automatic engagement.

The BWB awarded Oto Melara contracts for the supply of five 127/64 LW Alleggerito lightweight naval guns, four for installation on the F125 frigates and the fifth for training.

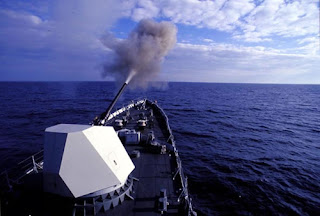

The gun is installed on the forward gun deck. The turret of the 127/64 Alleggerito has a low radar cross section.

The gun has two automatic feeding devices (AFDs), one for the charges and one for the projectiles, the rounds being automatically assembled before entering the turret, and can fire long-range Vulcano ammunition. The guns have a 35-rounds-a-minute rate of fire and a range of 23km against surface targets and 8.6km against airborne target.

The German Navy has also selected the Oto Melara remote controlled 12.7mm HITROLE naval turret in the naval tilting (NT) option for the F125. The contract covers the supply of 25 systems, five for installation of each of the four frigates and five for installation on land for training.
Missiles

Two quadruple missile launchers for the Boeing RGM-84 Harpoon anti-ship missile are installed amidship on the missile deck forward of the funnel. The Harpoon missiles are armed with a 227kg warhead and use active radar homing. The missiles have a high subsonic speed (Mach 0.9) and a range of up to 130km.

The F125 has two 21-cell mk49 launchers armed with the Raytheon RIM-116 rolling airframe missile (RAM). The RAM point defence missile is a lightweight infrared homing surface-to-air missile for deployment against incoming anti-ship cruise missiles. The forward launcher is installed immediately forward of the bridge and the aft launcher is installed on the roof of the helicopter hangar just forward of the helicopter deck.
Sensors

The frigates have no conventional on-board sonar but instead have a diver and swimmer detection sonar to counter terrorist and special forces threats. The frigates are equipped with a 360° infrared surveillance system installed on the front surface of the tower mast at a position just lower than the air and surface search radar.

Radar systems will include an EADS TRS-3D air and surface search radar, navigation and fire control radars. The TRS-3D radar carries out automatic detection, track initiation and tracking of all types of air and sea targets.

The navigation radar is installed on the roof of the bridge.
Countermeasures

Much of the electronic warfare suite has not been announced but it will include four Rheinmetall MASS multi ammunition soft-kill systems. The MASS decoy and mini mortar dispensers are installed on the port and starboard sides above the bridge and on the helicopter hangar roof.

Aircraft

The frigate has a 490m² aft helicopter deck and a hangar for two NH-90 helicopters. The NH-90 helicopters have a range of 790km.
Propulsion

The frigates are fitted with a new combined diesel electric and gas (CODLAG) electrical propulsion system with a 20MW General Electric LM 2500 gas turbine, four MTU 20V 4000 M53B diesel engines providing 3,015kW each (total 12.06MW) and two Siemens electric motors providing 4.5MW each (total 9MW).

The main machinery will run for 30,000 hours between major overhauls. The F125 is fitted with bow thrusters for precision dockyard manoeuvring without assistance.
